Drag / Anti-Drag Wire Lugs

Description

Product Details:

Note: Multiple lugs appear in the picture to more clearly show the product – the item is sold individually.

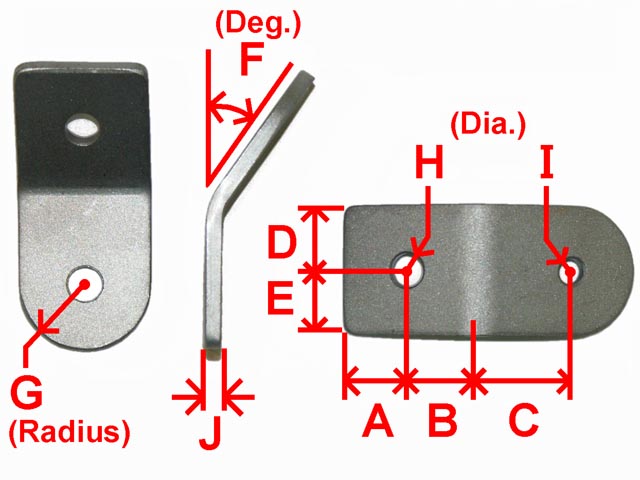

These 4130 Chromoly wire lugs are typically used to attach the drag and anti-drag wires to the spars in the Skybolt, Pitts S1-C and S1-SS, as well as many other aircraft. Please see the chart below for dimensions (these lugs are made to match the plans for the Skybolt and Pitts). The holes are sized to attach to the spar and clevises using standard sizes, but they may be drilled or reamed to a larger diameter if needed for your application. The user can bend these tabs to a different angle if required.

NOTE: For externally-visible applications, you may also want to consider our polished and rounded stainless steel Tail Wire Mounting Tabs. These have a more attractive appearance, and are intended for mounting brace wires to tail surfaces.

OPTIONS:
Lug Style:
1. Skybolt Standard
2. Pitts S1-C / S1-SS
